*Pictures shown are for reference only. Actual product may vary due to product enhancement.
Apex Code
AJC-CLI571MXLR
OEM Code
CLI-571MXL
Printer Models (for use in)

Canon PIXMA MG5750（5色） Canon PIXMA MG5751（5色） Canon PIXMA MG5752（5色） Canon PIXMA MG5753（5色） Canon PIXMA MG6850（5色） Canon PIXMA MG6851（5色） Canon PIXMA MG6852（5色） Canon PIXMA MG6853（5色） Canon PIXMA MG7750（6色包含GY） Canon PIXMA MG7751（6色包含GY） Canon PIXMA MG7752（6色包含GY） Canon PIXMA MG7753 （6色包含GY） Canon PIXMA TS9050/9055/8050/8051/8052/8053(6色包含GY) Canon PIXMA TS6050/6051/6052/5050/5051/5052/5053（5色）

Canon PIXMA MG5750（5色） Canon PIXMA MG5751（5色） Canon PIXMA MG5752（5色） Canon PIXMA MG5753（5色） Canon PIXMA MG6850（5色） Canon PIXMA MG6851（5色） Canon PIXMA MG6852（5色） Canon PIXMA MG6853（5色） Canon PIXMA MG7750（6色包含GY） Canon PIXMA MG7751（6色包含GY） Canon PIXMA MG7752（6色包含GY） Canon PIXMA MG7753 （6色包含GY） Canon PIXMA TS9050/9055/8050/8051/8052/8053(6色包含GY) Canon PIXMA TS6050/6051/6052/5050/5051/5052/5053（5色）

Region
EUR
Color
M
Quantity Added

Related Products

CLI-571MXL

CLI-571BKXL

PGI-570PGBKXL

CLI-571GY

CLI-571Y

CLI-571M

CLI-571C

CLI-571BK

CLI-571GYXL

CLI-571YXL

CLI-571CXL

Installation Method

Installation Guide for Canon VI Series



Technical Support

    Common error code and solution for Canon IV/VI series printers

    Error Code Reason Solution
    1300 Paper jam. Remove the jammed paper.
    1303 The paper is jammed in the transport unit. Remove the jammed paper from the transport unit.
    1304 Paper is jammed when performing automatic duplex printing. Remove the jammed paper.
    1600 If the lamp on the ink tank is flashing, ink may have run out. ①Replacing the ink tank is recommended.
    ②If printing is in progress and you want to continue printing, press the OK button with the ink tank installed. Then printing can continue. Replacing the ink tank is recommended after the printing. The machine may be damaged if printing is continued under the ink out condition.
    Note: If multiple ink lamps are flashing red, check the status of each ink tank.
    1401 The print head may be damaged. Please contact the service center.
    1403
    1405
    1680 Some ink tanks are not installed in the correct position. (The lamps on the ink tanks flash.) Confirm that the ink tanks are installed in the appropriate positions.
    1681 More than one ink tanks of the same color are installed. (The lamps on the ink tanks flash.) Confirm that the ink tanks are installed in the appropriate positions.
    1689 Printer detected ink out condition (The lamp on the ink tank flashes). Replace the ink tank and close the Print Head Cover.
    ①An empty ink tank has been installed.
    ②Printing with an ink tank that was once empty may damage the printer.
    ③If you want to continue printing in this condition, you need to release the function for detecting the remaining ink level. Press and hold the RESUME/CANCEL button for at least 5 seconds, and then release it.
    ④With this operation, releasing the function for detecting the remaining ink level is memorized. Please be advised that Canon shall not be liable for any malfunction or trouble caused by continuation of printing under the ink out condition or refilled ink tanks.
    Note: if the function for detecting the remaining in level is disabled, the ink tank is displayed in gray on the printer status monitor.
    1660 No ink tank is installed. Please install the ink tank.
    1750 Appropriate ink tank is not installed ①Printing cannot be executed since the ink tank is not mismatched.
    ②Install the appropriate ink tank.
    ③If you want to cancel printing, touch the machine's Stop button.
    1684 The ink tank cannot be recognized. ①Printing cannot be executed because the ink tank may not be installed properly or may not be compatible with this machine.
    ②Install the appropriate ink tank.
    ③If you want to cancel printing, touch the machine's Stop button.
    1410 The ink tank cannot be recognized. Open the operational panel and replace the ink tank which lamp is off.
    1411
    1412
    1413
    1414
    1688 Ink has run out (The lamp on the ink tank flashes). ①Replace the ink tank and close the Print Head Cover.
    ②Printing with an ink tank that was once empty may damage the printer.
    ③If you want to continue printing in this condition, you need to release the function for detecting the remaining ink level. Press and hold the RESUME/CANCEL button for at least 5 seconds, and then release it.
    ④With this operation, releasing the function for detecting the remaining ink level is memorized. Please be advised that Canon shall not be liable for any malfunction or trouble caused by continuation of printing under the ink out condition or refilled ink tanks.
    Note: if the function for detecting the remaining in level is disabled, the ink tank is displayed in gray on the printer status monitor.
    1890 The protective material for the print head holder or the tape may remain attached to the holder. ①The protective material for the print head holder or the tape may remain attached to the holder.
    ②If you find the protective material or the tape remains attached, remove it, then close the operation panel.
    ③If the problem is not resolved, contact the service center.
    1700 The ink collector unit will be full. ①Touch OK on the touch screen to continue printing.
    ②Contact the service center.
    1701
    1712
    1713
    1714
    1715
    5B00 Printer error has occurred. Contact the service center.
    5B01
    5B12
    5B13
    5B14
    5B15
    2900 Scanning the print head alignment sheet has failed. Press the OK button to dismiss the error, then take the actions described below.
    ①Make sure that the print head alignment sheet is set in the correct position and orientation on the platen glass.
    ②Make sure the platen glass and the print head alignment sheet are not dirty.
    ③Make sure the type and size of loaded paper is suitable for Automatic Print Head Alignment.
    ④For Automatic Print Head Alignment, always load one sheet of A4 or Letter-sized plain paper.
    ⑤Make sure if print head nozzles are clogged.
    ⑥Print the nozzle check pattern to check the status of the print head.
    ⑦If the error is not resolved, perform Manual Print Head Alignment. For more details, please refer to Online Manual.
    B202 An error occurred that required contact with the service center. ①Turn off the power and unplug the power cord from the power outlet.
    ②Contact the service center.
    B203
    B204
    B205
    5100
    C000    		 Printer error has occurred. ①Cancel printing and turn off the machine.
    ②Remove any foreign objects from the paper output slot, rear side and inside of the device.
    ③Make sure that the ink tanks or ink cartridges are installed correctly.
    ④Turn the device on again.
    ⑤If problem persists, contact the service center.




    6000 Printer error has occurred. ①If a paper jam occurs, remove the paper according to the location and cause of the jammed paper.
    ②Turning the printer off and unplugging it before plugging it back in and attempting to print once more.
    ③If the problem is still not resolved, please contact service center.




    5011 Printer error has occurred. ①Turning the printer off and unplugging it before plugging it back in and attempting to print once more.
    ②If the problem is still not resolved, please contact service center.
    5012
    5050
    5200
    5400
    6500
    6502
    6800
    6801
    6900
    6901
    6902
    6910
    6911
    6930
    6931
    6932
    6933
    6934
    6935
    6936
    6937
    6938
    6940
    6941
    6942
    6943
    6944
    6945
    6946
    6950

    close

    Error:

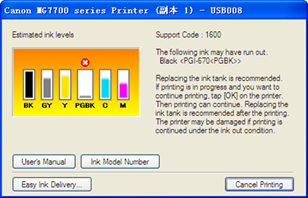

    "The following ink tank may have run out", Error code "1600"


    Reason:
    The ink becomes exhausted.

    Solution:
    Replace with a new chip.

    close

    Error:
    "The following ink tank cannot  be recognized", Error code "1684"


    Reason:
    ①Chip's LED bulb is completed detached or damaged (with lampshade).
    ②The ink cartridge is installed with other chip model.

    Solution:
    ①Replace with a chip that hasn't LED damage.
    ②Replace with a correct chip.

    close

    Error:
    "The following ink tank cannot  be recognized", Error code "1413/1411"


    Reason:
    There is a problem with the cartridge light pipe, causing the printer to fail to finish the light check.

    Solution:
    Replace with other ink cartridges.

    close

    Error:
    More than one ink tank of the following color is installed. Error code "1681"


    Reason:
    Repeatedly installed multiple chips of the same color.

    Solution:
    Replace with correct chips.

    close

    Error:

    Printer error "6502". At this time, you can cancel printing and restart the printer. Thus, the cartridge unit can be normally exited.


    Reason:
    PGBK is misplaced with other color chips.

    Solution:
    Install the cartridges one by one and check which color is not installed correctly. Then correctly install the chips.



    close

    Error:
    "Some ink tanks are not installed in the correct position" Error code:1680


    Reason:
    The chip got installed backwards (the chip is not installed in the corresponding color chip slot).

    Solution:
    Install the cartridge correctly.

    close

    Error:
    "The following ink tank cannot  be recognized."  Error code: 1660


    Reason:
    ①Chip alignment is not correct.
    ②The chip is not installed.

    Solution:
    ①Reinstall the cartridges and chips correctly.
    ②Install the correct chip model.


    close
