*Pictures shown are for reference only. Actual product may vary due to product enhancement.

Apex Code

ALH-CF500A

OEM Code

CF500A

Printer Models (for use in)

HP Color LaserJet Pro M254/M254dw/254nw HP Color LaserJet Pro MFP M281cdw/281fdn/281fdw/280/280nw

Region

Color

Quantity Added

Installation Method

Installation Guide for Cartridge Chip (Take CF217A as an example)

Installation Guide for Drum Unit Chip (Take CF219A as an example)

Installation Guide for CF500/510/530/540 Series (Take CF500A as an example)

Installation Guide for CF237 Series（Take CF237A as an example）

Installation Guide for CF450/460/470 Series（Take CF450A as an example）

CF244/248系列安装说明（以CF244A为例）

Technical Support

Error Code Analysis for HP 217 Series (No Display Screen)

Error Code Analysis for HP 217 Series (No Display Screen)

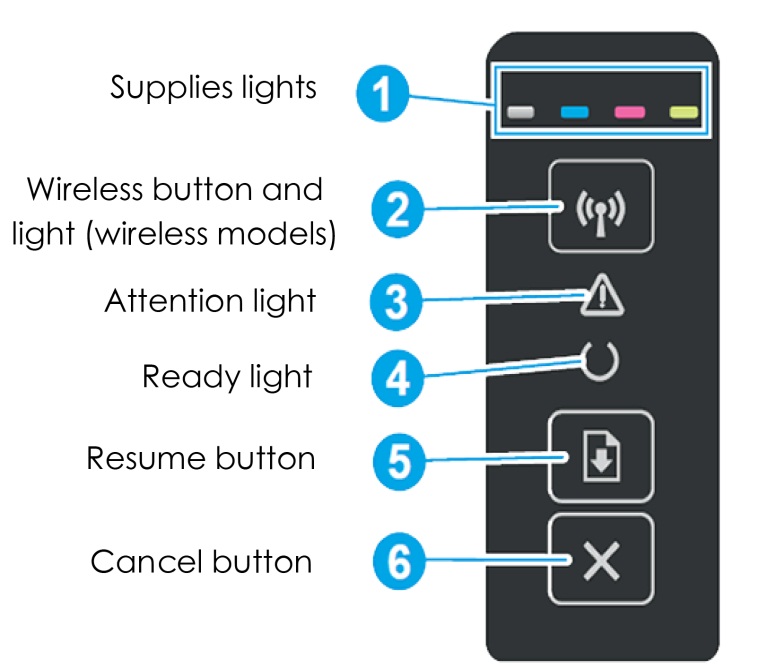

1. Control Panel With Lights And Buttons Indicated

Figure: Buttons and lights displayed on the HP M154a/154nw control panel

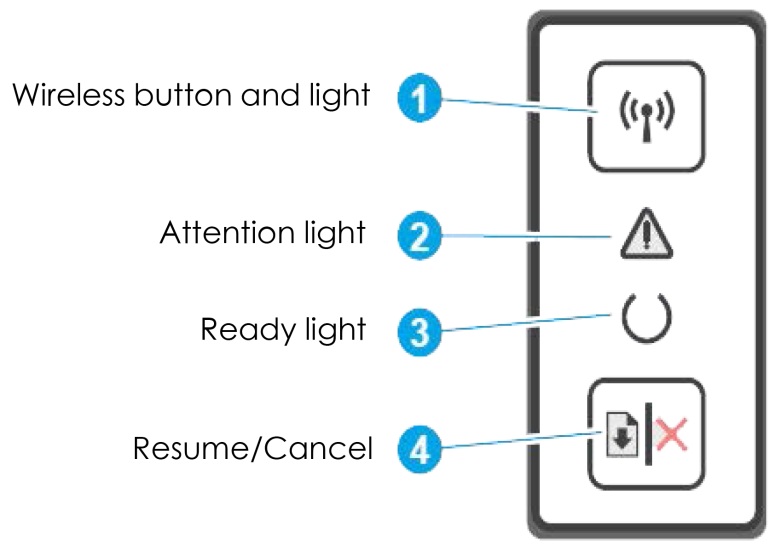

Figure 2: Buttons and lights displayed on the HP M102a/M102w/M104a/M106w control panel

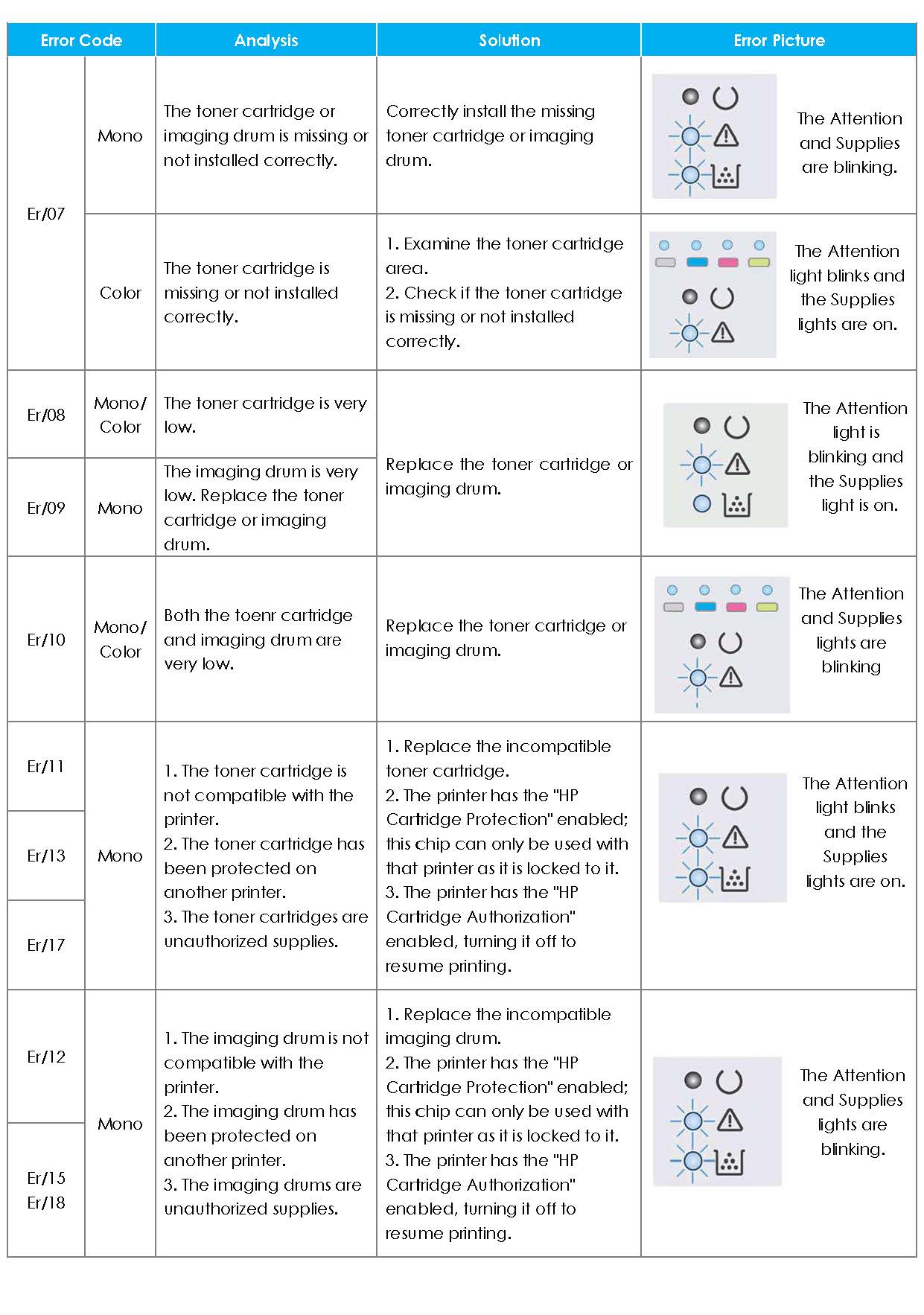

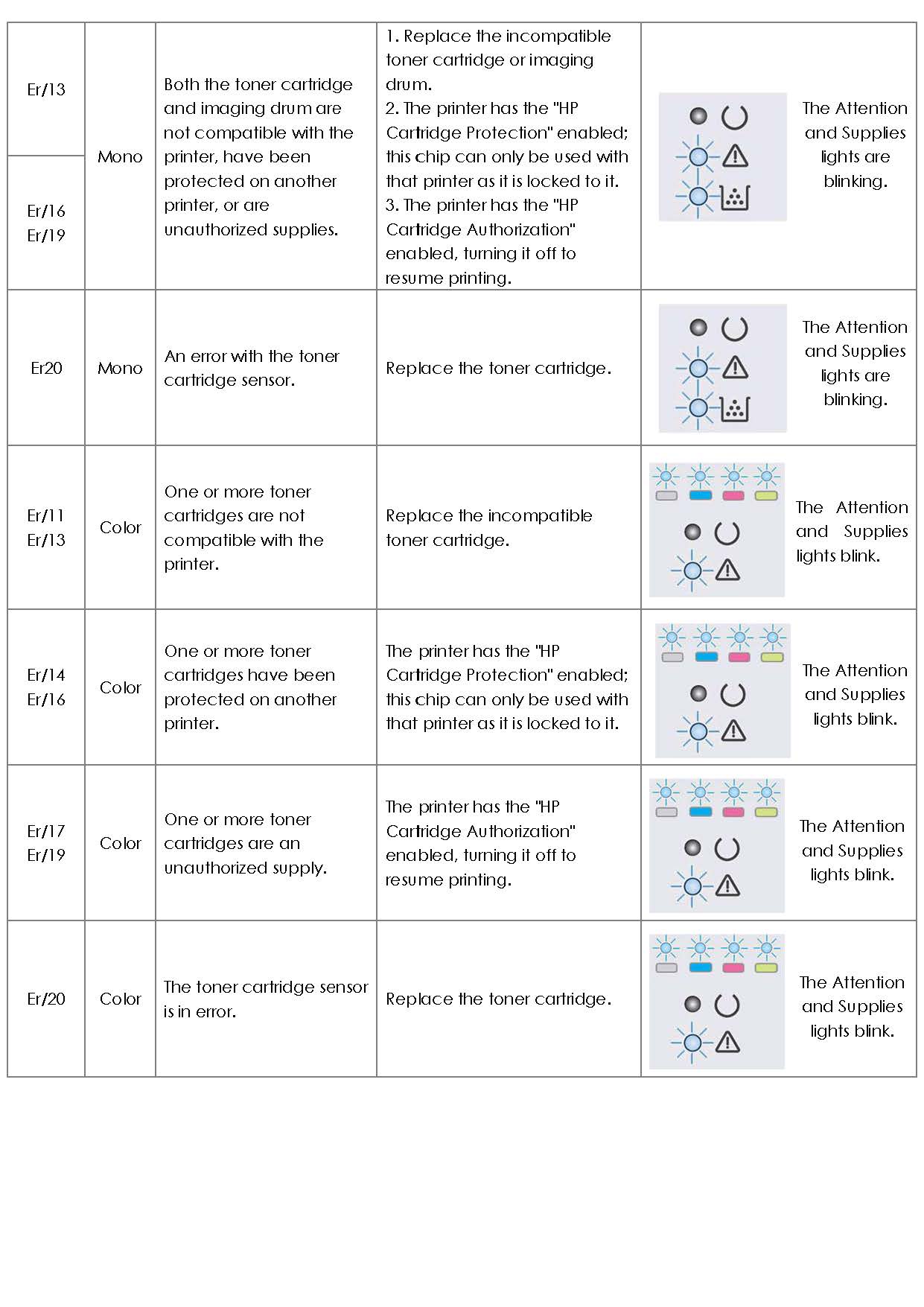

2. Error Code Analysis

3. How to quickly find the error message?

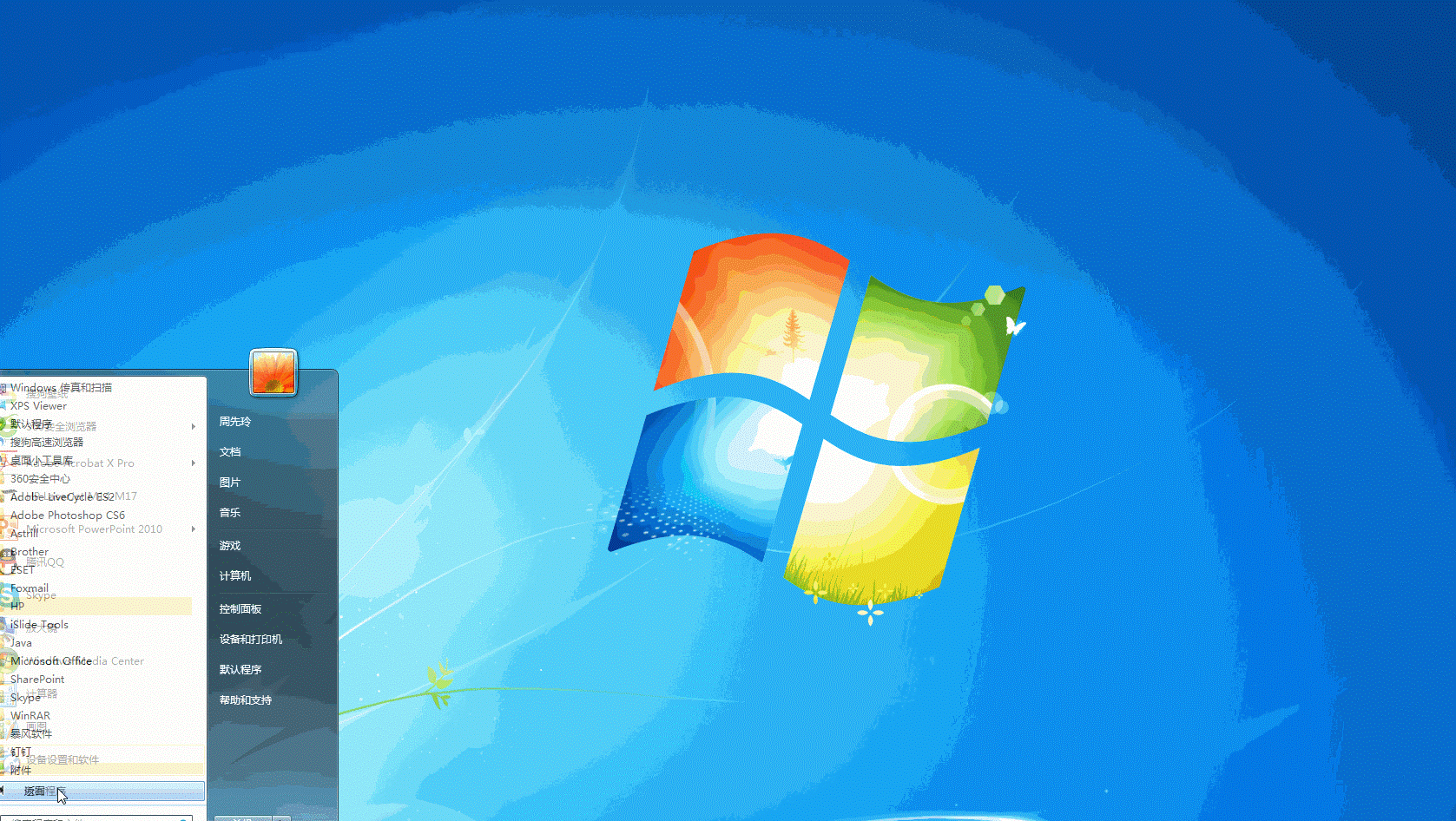

Download and install the printer driver from
HP official website → Start menu →
HP folder → HP LaserJet M14-M17 →
Double-click HP Drives → HP Device Toolbox →
HP LaserJet M15a (printer model)
I I
I I
\/

I I
I I
\/

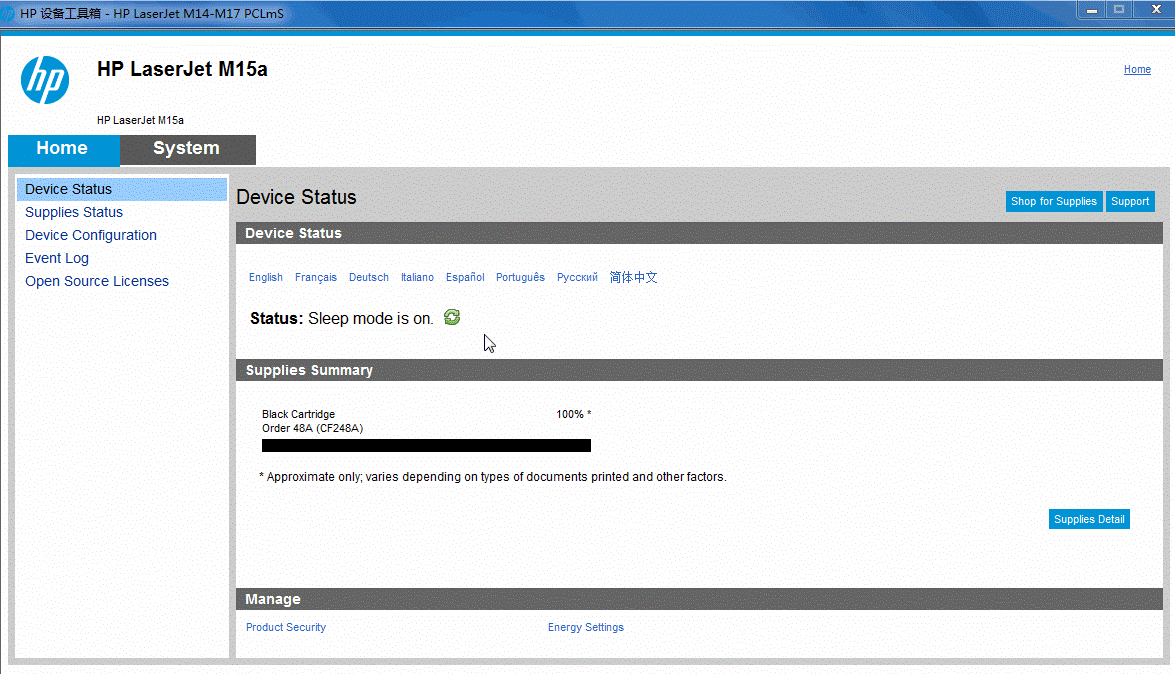

Check device status →
Open the printer cover →
Click "Sleep mode is on" → Door is open→
Close the printer cover → Initializing → Ready
↓↓↓
Click "Ready"→
Open the printer cover→
Remove the toner cartridge→
Close the printer cover → Initializing →
Supply memory error →Open the printer cover →
Install the toner cartridge → Close the printer cover →
Initializing → Ready

Error Code Analysis for HP CF217 Series

Error Code Analysis for HP CF217 Series

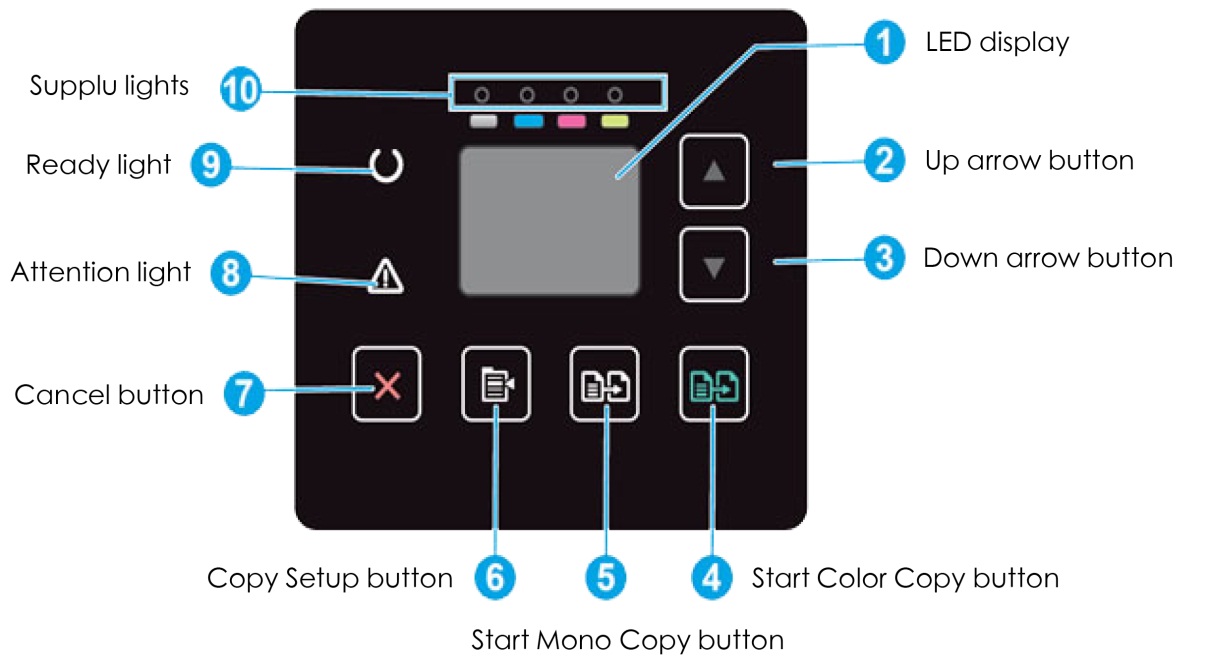

1. Control Panel Buttons, Icons, and Lights

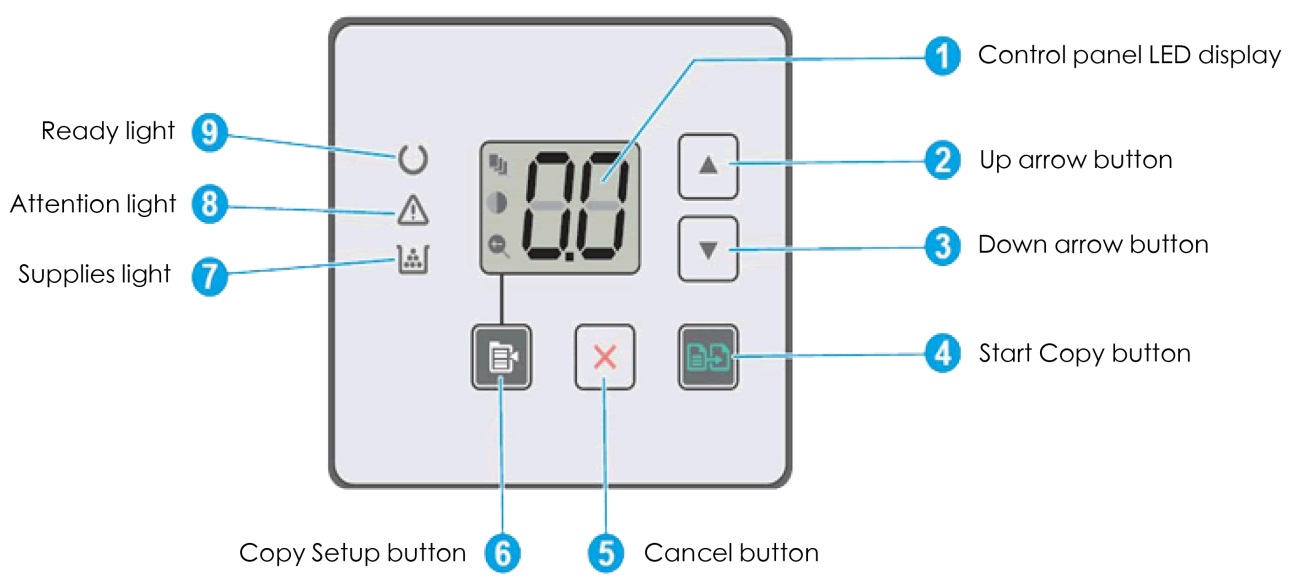

Figure 1: Buttons and lights displayed on the HP M154a/180n control panel

Figure 2: Buttons and lights displayed on the HP M130a/132a/134a control panel

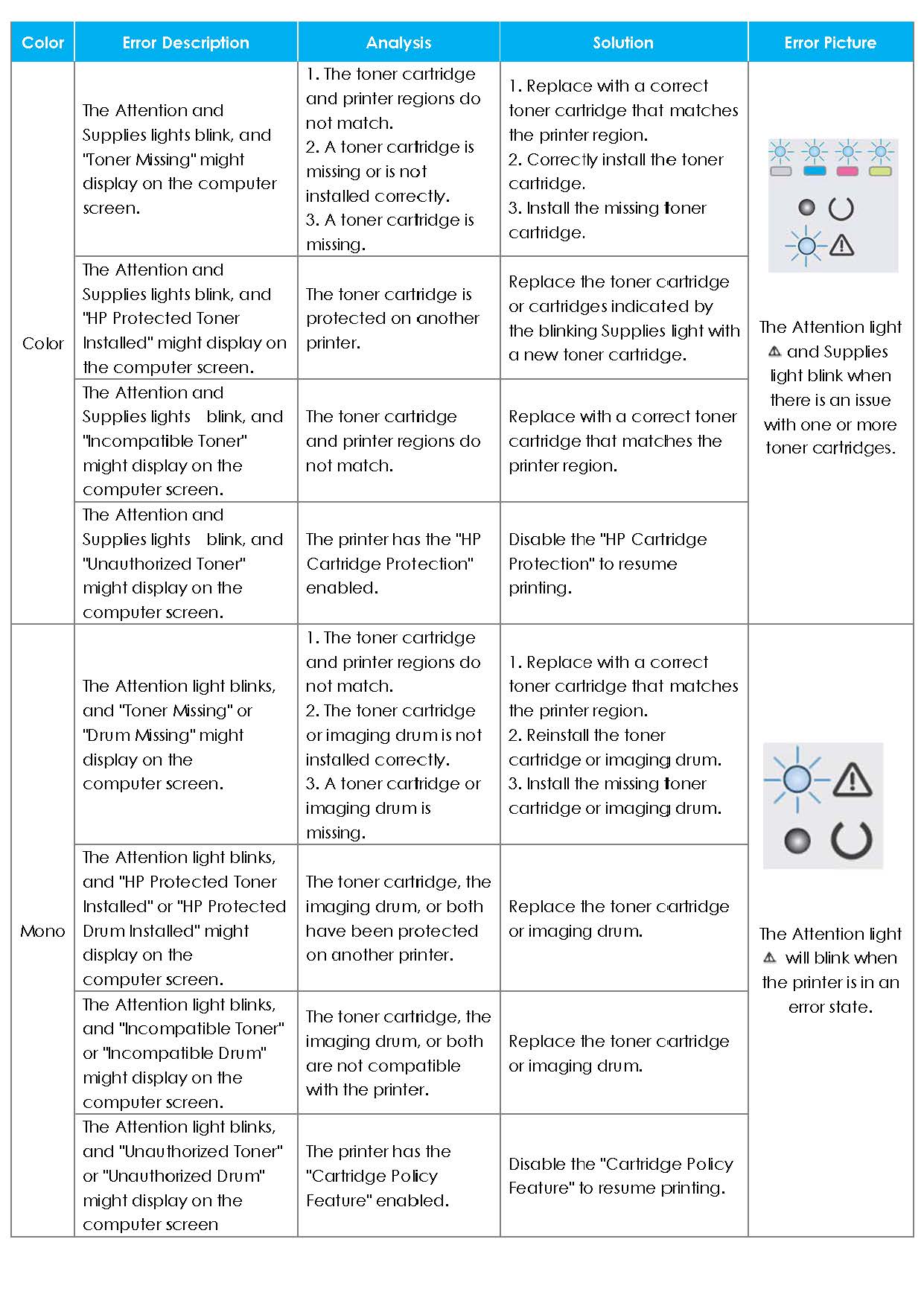

2. Error Code Analysis
